Build a powerful 10th Gen Intel gaming PC with the GIGABYTE B460 AORUS PRO AC. Featuring an 8+2 phase digital VRM, dual NVMe M.2 slots with Thermal Guards, built-in Wi-Fi, Bluetooth 5.0, Intel 2.5GbE LAN and advanced cooling, it delivers a strong foundation for gaming and performance-focused builds.

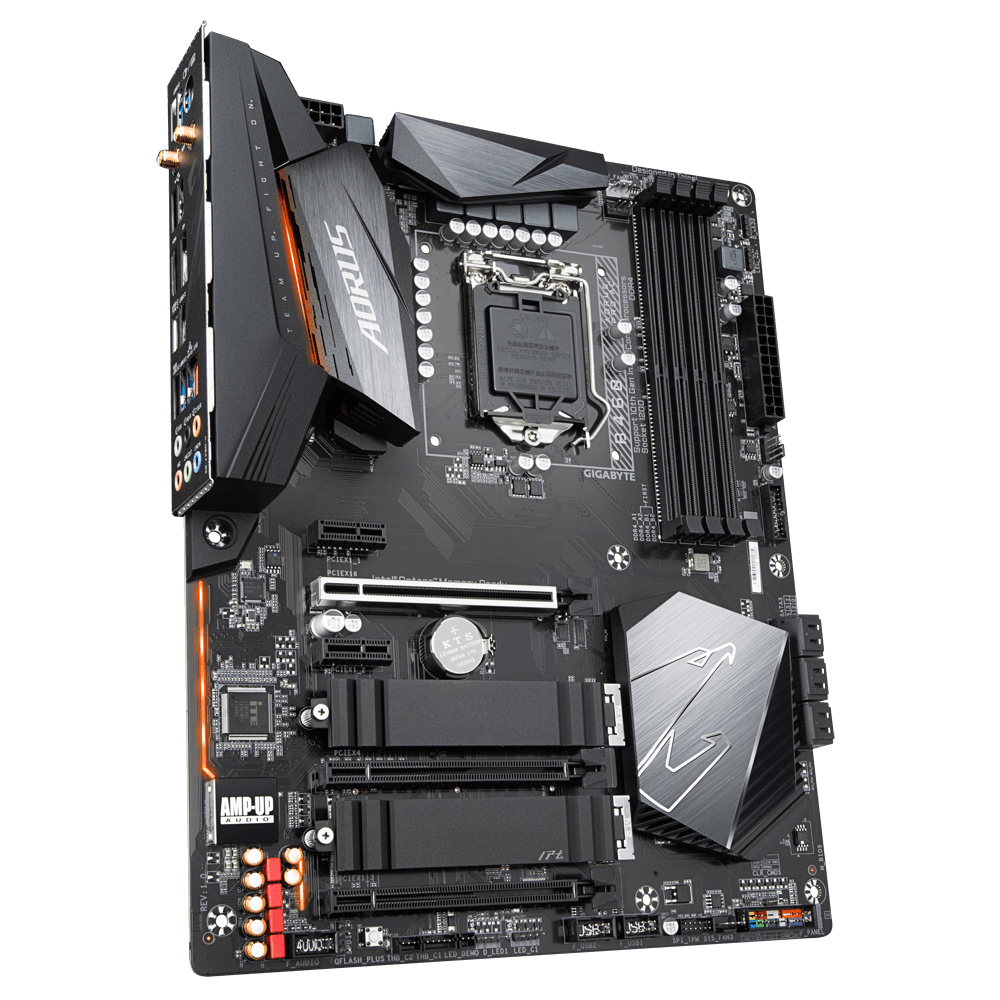

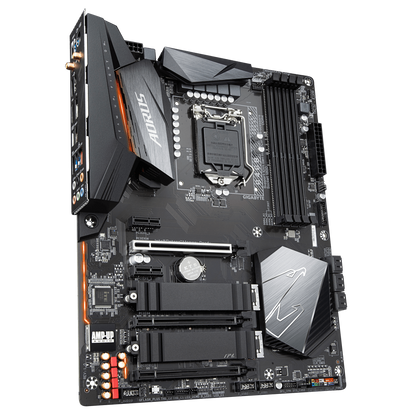

The GIGABYTE B460 AORUS PRO AC (Rev. 1.0) is a feature-packed ATX gaming motherboard designed for 10th Generation Intel Core processors on the LGA1200 socket.

Its Direct 8+2 Phase Digital VRM and advanced thermal design help provide stable power delivery and cooling for demanding gaming workloads. Four DDR4 DIMM slots support up to 128GB memory, giving builders plenty of capacity for gaming, multitasking and productivity.

For fast storage, the motherboard provides dual PCIe 3.0 x4 M.2 slots with Thermal Guards, helping you take advantage of high-speed NVMe SSDs while managing drive temperatures.

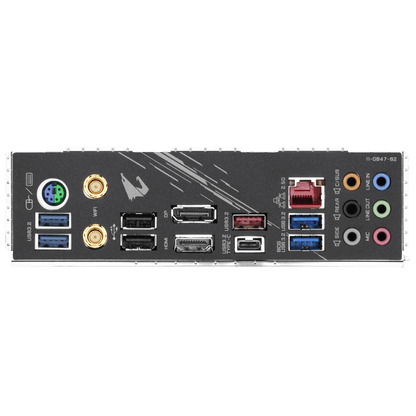

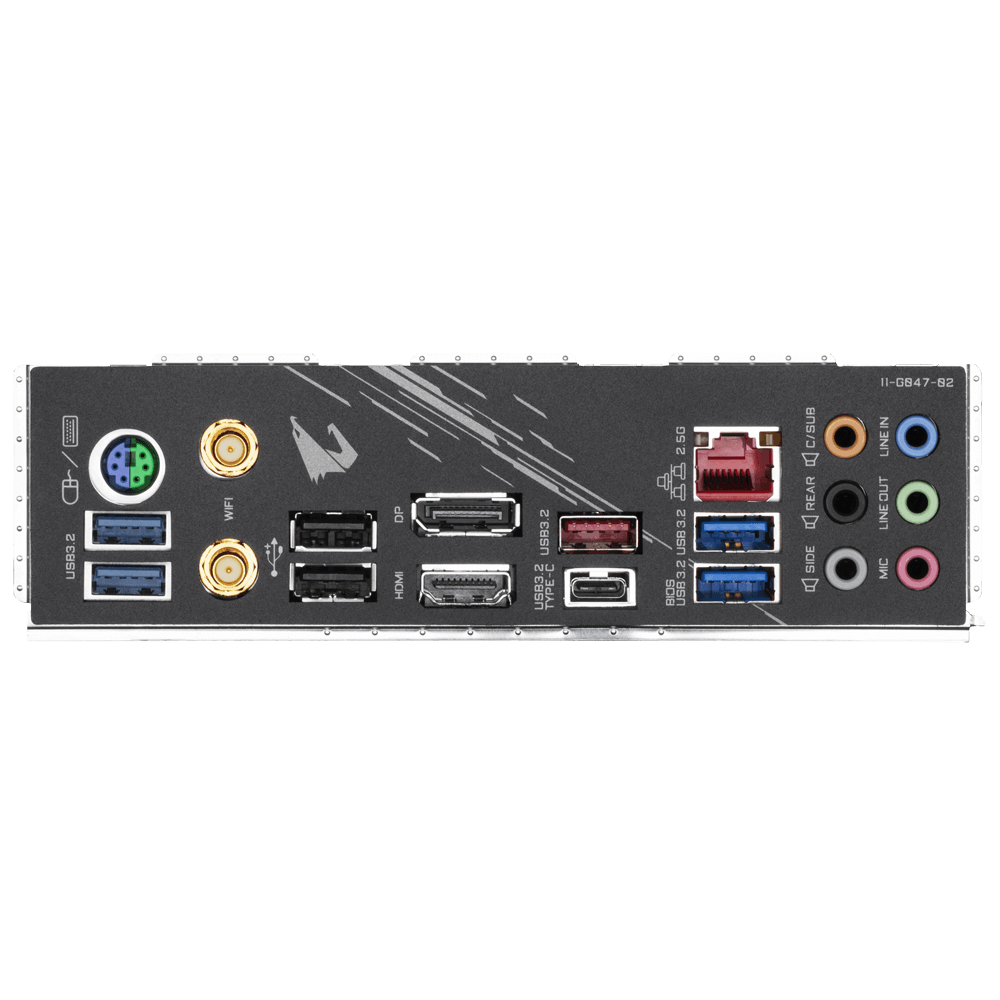

Connectivity is another major strength. Built-in Intel dual-band 802.11ac Wi-Fi, Bluetooth 5.0 and Intel 2.5GbE LAN give gamers flexible high-speed networking options. USB 3.2 Gen 2 Type-C support adds convenient connectivity for modern peripherals.

Premium Realtek ALC1220-VB HD Audio, RGB Fusion 2.0, Smart Fan 5 and a pre-installed I/O shield round out a motherboard built for powerful, clean and feature-rich gaming systems.

Performance Highlights

• Direct 8+2 Phase Digital VRM
• Advanced thermal design with enlarged heatsink
• Dual PCIe 3.0 x4 NVMe M.2 support
• M.2 Thermal Guards
• Intel 2.5GbE LAN
• Built-in dual-band Wi-Fi
• Bluetooth 5.0
• Smart Fan 5 cooling control
• USB 3.2 Gen 2 Type-C
• ALC1220-VB high-definition audio
• RGB Fusion 2.0
• Q-Flash Plus

Specifications

Brand: GIGABYTE
Model: B460 AORUS PRO AC (Rev. 1.0)
Chipset: Intel B460 Express
Socket: LGA1200
CPU Support: 10th Gen Intel Core i9 / i7 / i5 / i3, Pentium & Celeron
Form Factor: ATX
Memory: 4 × DDR4 DIMM
Maximum Memory: Up to 128GB
Memory Architecture: Dual Channel
Storage: 2 × M.2 + 6 × SATA 6Gb/s
Primary GPU Slot: PCIe 3.0 x16
LAN: Intel 2.5GbE
Wi-Fi: Intel 802.11ac Dual-Band
Bluetooth: Bluetooth 5.0
Audio: Realtek ALC1220-VB HD Audio
Display Outputs: HDMI + DisplayPort
USB Type-C: Yes, USB 3.2 Gen 2
RGB: RGB Fusion 2.0
BIOS Feature: Q-Flash Plus
